5/8" Faceplate, 1-3/8" Backset, Bottom Tongue @ 29.65", Top Tongue @ 37.20", 36" Handle Height

Part Number: 49902-1635T-09-Kit
Price: $205.87

Replacement Kit for a variety of Multipoint locks on doors with Old Hoppe, Fuhr, Roto or other brands.

Please confirm all measurements to be sure this is the correct replacement for your door.

The kit includes bottom gear, top extension and stainless steel screws

.


PLEASE REVIEW ALL IMAGES FOR IMPORTANT DETAILS.

You  need to be familiar with all terminology


Specifications:

Faceplate Width: 5/8 inch (16mm)

Backset: 1-3/8 inch (35mm)

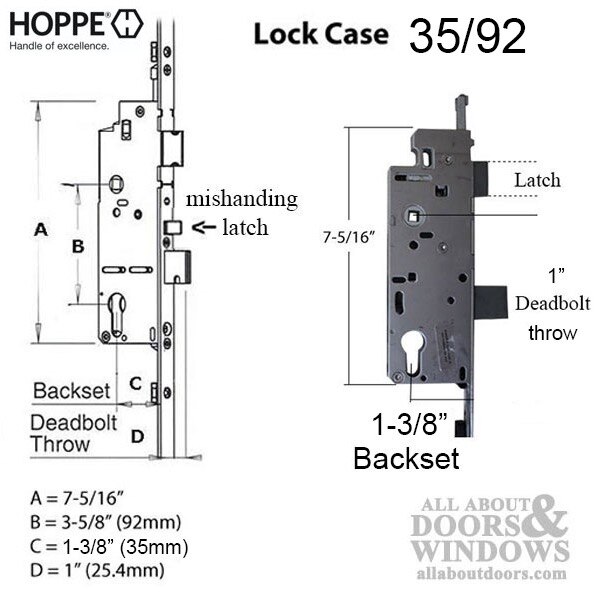

Handle to Cylinder PZ: 3-5/8 inch (92mm)

Deadbolt Throw: 1 inch  (25.4mm)

Handle Height: 36 inch ( 914mm)

Top Tongue Position: 37.20 inch ( 945mm)

Bottom Tongue Position: 29.65 inch ( 753mm)

Overall Length: Doors 79.13" - 92.52"

Croppable: Yes, Max cutoff from top extension 3.94 inch (10mm)

Note: This multipoint lock can be trimmed for different height doors.


Kit Contents:

8778143: 16mm Manual Gear, 35/92 Tongue D/B 1 inch (25.4mm), HH 36 inch (914mm)

8778555: 16mm Manual Top Extension, Tongue @ 37.20 (945mm) length

8785695: Installation Screws, 1-3/8 Length (35mm) - Stainless Steel (20)


Optional Related Parts: 1-3/4" Door - Stainless Steel

1964522 - Curved Lip Tongue Strike

2025199 - Radius Lip Tongue Strike

8784707 - Flat Tongue Strike

1963554 - Latch & Deadbolt Strike Plate, Curved 1-3/4" (45mm) door - Stainless Steel

2342311 - Latch & Deadbolt Strike Plate, Flat 1-3/4" (45mm) door - Stainless Steel

8786547 - Dust cap for strike plate


INSTALLATION NOTE: Cutting to length

1. Lay the old lock and new lock side by side to get length.

2. The top extension is longer than needed,  Mark the Top extension for proper length.

3. Using a hacksaw cut excess from top of extension

4. Attach top extension to lower assembly

5. Install complete lock, be sure the handle height is the same as before

6. Test operation of door BEFORE closing. The small Mis-handing latch must be depressed to operate lock.


Operation: Manual Function

To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt

To unlock door, Turn Thumb turn or key and then depress lever.

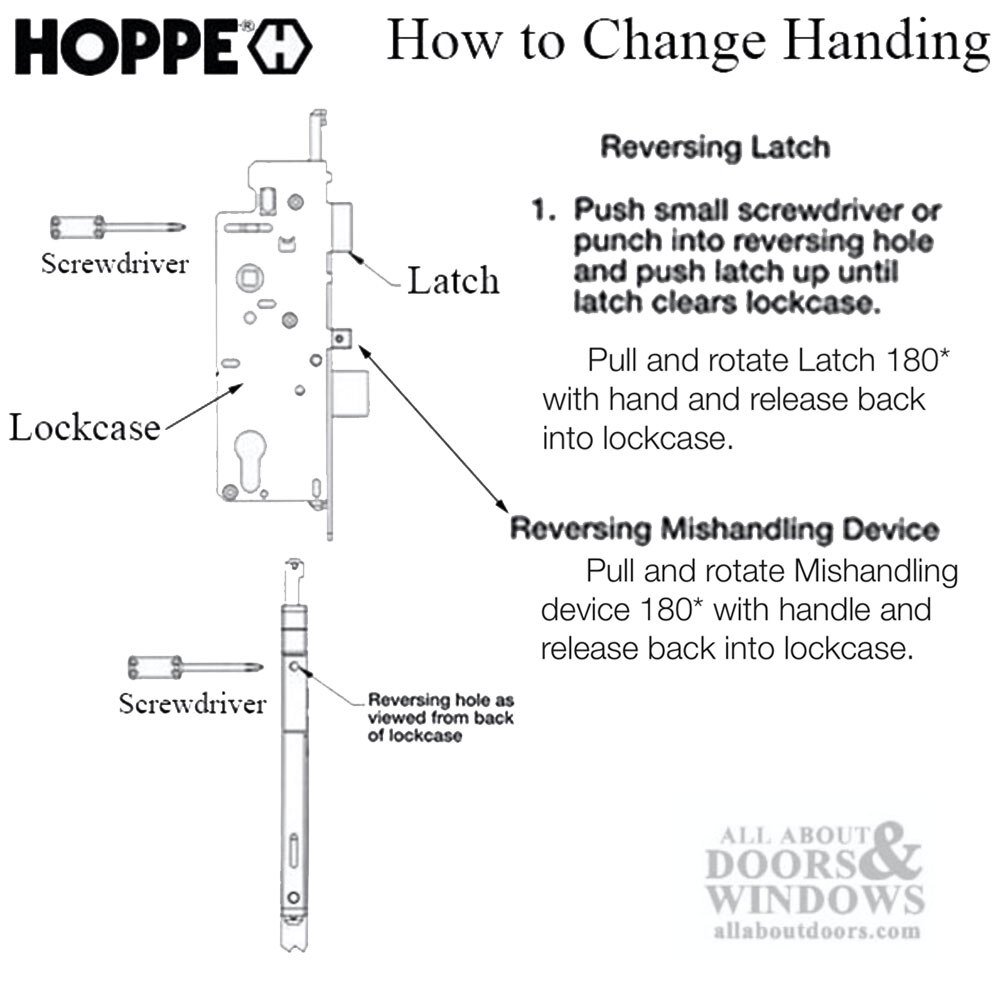

To Change Handling / Reversing Latch

Latch handing may be changed by inserting small screwdriver into small hole in back of latch and pushing forward, Twist latch and release.  See additional pictures.

Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
